Crawl Space Repair Photo Album: Crawl Space Encapsulation in Brick, NJ

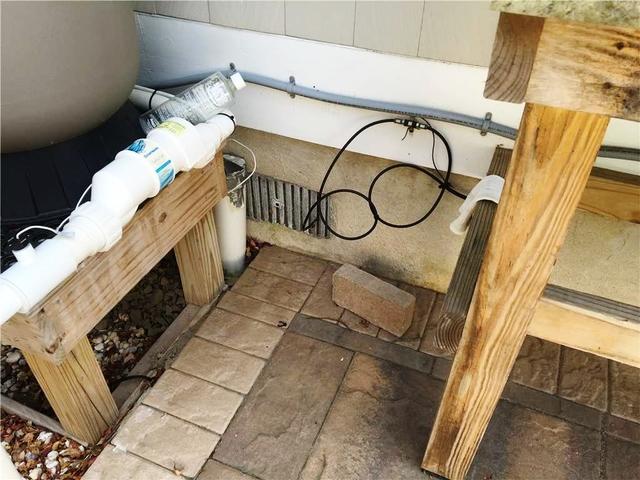

Homeowner living in Brick, NJ had a crawl space that would get a cold draft due to the crawl space vents being attached to the garage. During the winter months, the garage would get cold air coming through which would then flow into the crawl space, making it difficult for the warm to heat up since the cold air in the crawl space would then travel up inside the home. After doing some research, they decided to call Quality 1st Basement Systems to come take a look at what could be done. System Design Specialist, Maurice Robinson went inside the crawl space noticed the cold draft but also found water and moisture as well. Quality 1st Crew installed Drainage Matting and CleanSpace which work together to keep the crawl space clean, dry and moisture free. A SaniDry was also installed as a second form of protection against moisture. The crew also installed TerraBlock, a durable insulation and liner to the walls and floors to provide energy savings to the homeowner plus moisture protection at the same time. Maurice also suggested the SmartSump Crawl Space Sump Pump System that is designed to fit in the crawl space. The sump pump has a built in alarm to ensure awareness of any water in the crawl space. Homeowner was amazed by how encapsulating the crawl space made such a difference and recommended their neighbors consider encapsulation as well.

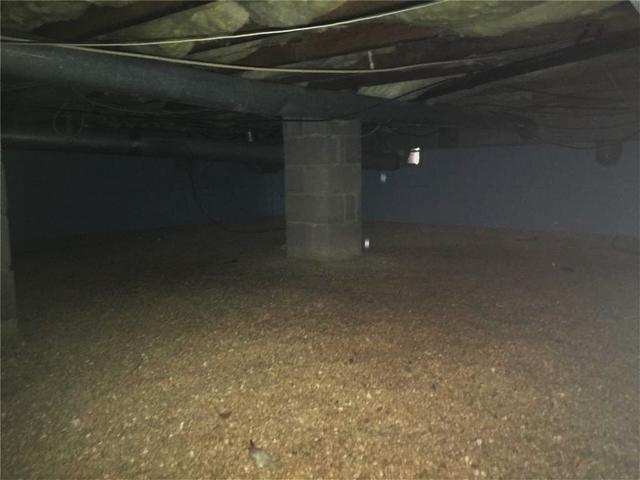

Damp and Cold Crawl space in Brick, NJ

The cold draft from the garage was traveling into the crawl space which was then making its way into the home, causing the home to take longer to heat up.

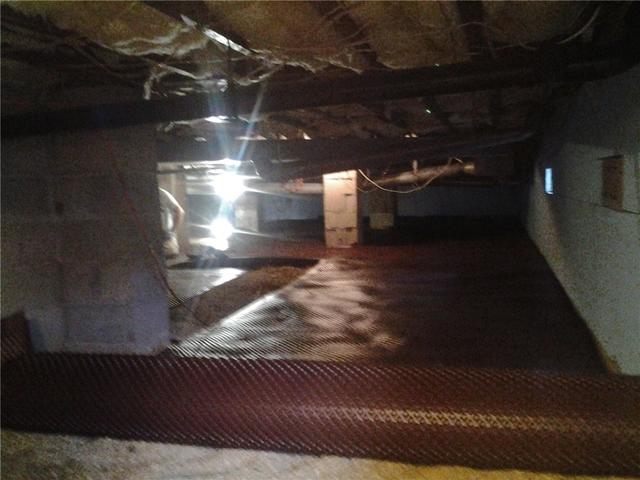

Drainage Matting Installed

Drainage Matting is laid down underneath the CleanSpace to prevent any water from getting trapped underneath the liner and redirects the water to the Smart Sump Pump.

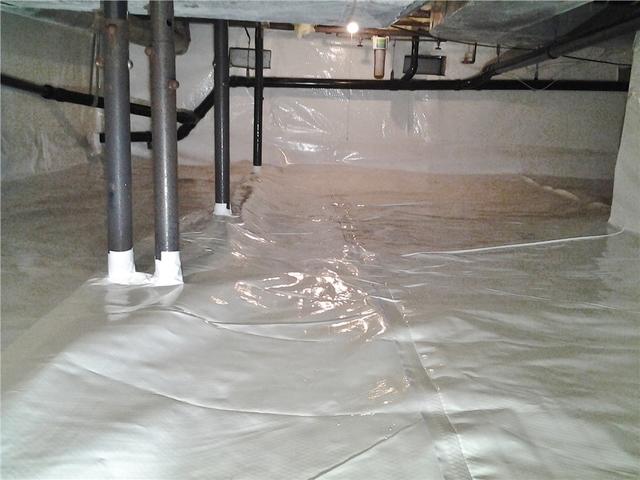

Bright White, Durable CleanSpace Liner Installed

CleanSpace is installed on the walls and floors to seal the crawl space off from unwanted cold or warm air, animals, dirt and of course water.

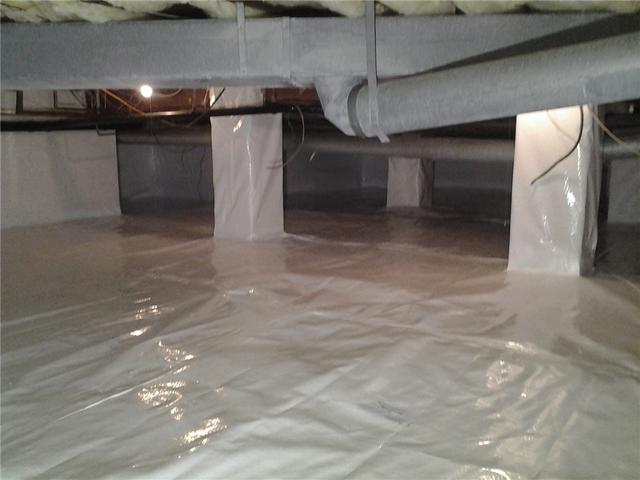

CleanSpace Protection

Clean space will keep your crawl space dry which will protect your insulation and structure of the home from mold and rotting.

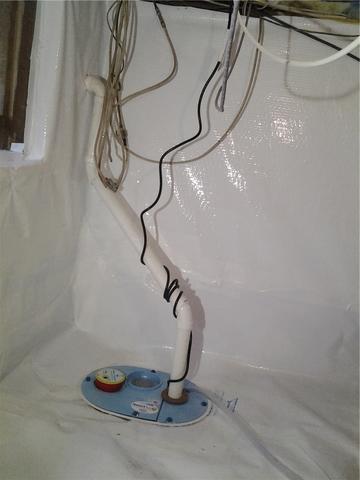

Smart Sump Pump

SmartSump Pump installed in the crawl space to provide protection against leaks and floods caused by rain or pipe bursts.

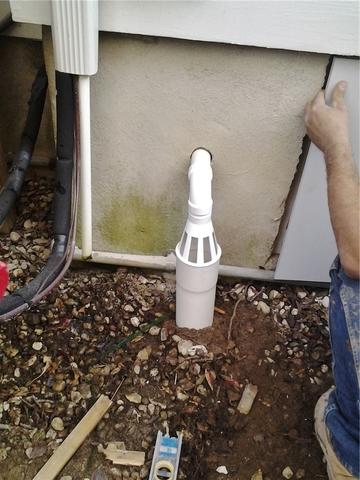

IceGuard

IceGuard is attached to the discharge pipe allowing an alternative exit for water if the pipe were freeze. The water will come through the cut outs on the top instead of flowing back inside the crawl space.

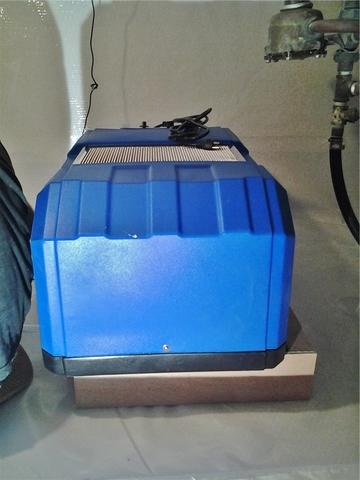

SaniDry Crawl Space Dehumidifier

SaniDry dehumidifier was installed to provide proper circulation of dry air inside the crawl space. This will help keep the crawl space warm, dry and mold free.
